Grab Bars: What to Install, Where, and How to Do It Right

Install grab bars at the toilet (both sides, 33-36 inches high), at the shower entry (vertical, waist height), and inside the shower (horizontal, 33-36 inches). Use studs or toggle bolts rated for 250+ lbs. Suction cups are not safe for seniors who need reliable support.

Many families install their first grab bar after a close call in the bathroom. Maybe your parent grabbed the towel bar to steady themselves and nearly pulled it off the wall. Maybe they had a slow slide into the tub that they didn't mention until days later. The bathroom is where things go wrong first, and it is the room that is easiest to fix.

According to the National Institute on Aging, the bathroom is one of the highest-risk rooms in the home for older adults. The CDC estimates that approximately 235,000 people are treated in emergency rooms each year for bathroom fall injuries. Grab bars, properly installed, are one of the most effective and least expensive modifications available. The challenge is knowing exactly where they go and how to put them in so they actually hold.

Where grab bars are most needed

Most bathroom falls happen during transitions: stepping in or out of the shower, lowering onto or rising from the toilet, and transferring in and out of a bathtub. Those three moments are where grab bars prevent injuries. Installing them anywhere else first misses the point.

Beside the toilet

This location gets less attention than the shower, but it is where many falls actually happen. Rising from a low toilet seat requires significant quad strength, and the toilet provides nothing to grip. A horizontal grab bar on each side of the toilet at 33-36 inches above the floor gives your parent something to push down on when standing and to lower against when sitting.

The bar needs to extend forward past the front of the toilet bowl. A bar that stops even with the back of the tank is too far back to be useful during the actual transfer. Standard ADA guidance calls for the bar to extend to the front edge of the toilet seat. A 42-inch bar on each side usually accomplishes this.

If the toilet is positioned so that one wall is accessible and the other is open space, a wall-mounted bar on the wall side plus a floor-mounted swing-down bar on the open side solves the problem without requiring two walls.

At the shower or tub entry

The moment of stepping over a tub threshold or into a shower stall is a high-risk transfer. A vertical bar mounted at the entry point, at about shoulder height or slightly lower, gives your parent something to grip while their weight shifts from one foot to the other. This bar should be within easy reach before the step begins, not after.

For a walk-in shower with no threshold, the vertical bar at the entry still matters. It provides an anchor point for anyone who feels unsteady at the start of a shower, before the floor gets wet.

Inside the shower or tub

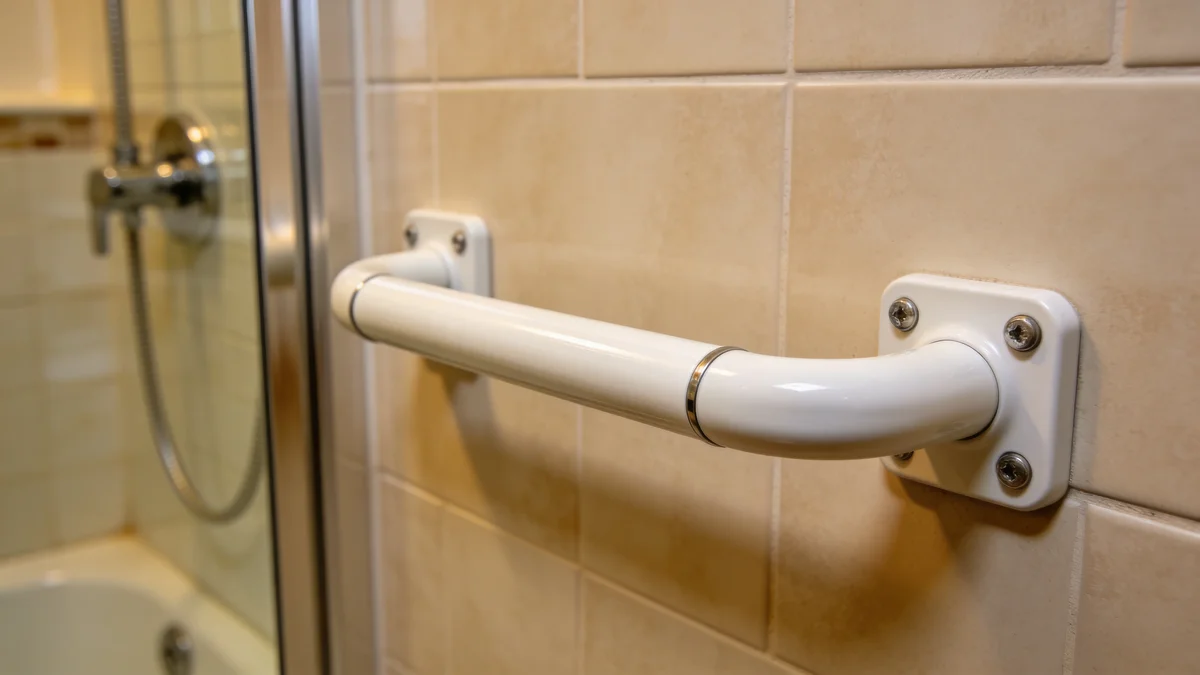

A horizontal bar along the longest wall inside the shower, at 33-36 inches above the floor, gives your parent something to hold while standing, turning, or bending. This is the bar that catches someone who starts to slip during a shower, not just during entry.

For a tub, add a second bar at 6-8 inches above the tub rim on the long wall. This one helps someone lower into and rise from the tub itself. The lower bar handles the seated-to-standing transfer. The higher bar handles balance while standing.

If your parent uses a shower bench or tub transfer bench, add a third bar near the bench at seat height. The combination of bench and bar dramatically reduces the physical demand of bathing for someone with limited leg strength or balance issues.

What to look for when buying grab bars

Not all grab bars are built the same. The differences that matter are weight rating, bar diameter, length, and finish.

On Amazon, the Moen Home Care series and the Healthline grab bars are commonly recommended options with ADA-compliant diameters and 250-lb ratings. Prices typically run $20-50 per bar depending on length and finish. Installation hardware is usually included.

How to install grab bars properly

The most important rule: the bar is only as strong as its anchor. A bar installed into a stud can hold 300 pounds or more. A bar installed into drywall with the wrong hardware can fail at 50 pounds of force. The hardware decision matters more than the bar itself.

Finding studs: the ideal anchor

Wall studs are the first choice for any grab bar. Use a stud finder to locate studs before marking any holes. In most bathrooms, studs run vertically at 16-inch intervals. The problem is that grab bars are rarely sized to span exactly 16 or 32 inches between mounting holes. Most bars have mounting holes positioned to accommodate stud spacing, but you may need to measure carefully and confirm before drilling.

Behind ceramic tile, finding studs is harder. A stud finder often struggles on tile. A magnet can sometimes locate the screws holding drywall or backer board to the stud. Tapping the tile and listening for a change in sound is the old-school method. If you cannot locate studs confidently, use toggle bolts in thick-enough drywall rather than guess.

Toggle bolts: when there is no stud

Toggle bolts (also called butterfly anchors) work by expanding behind the wall surface once inserted. They can hold significant weight in thick drywall. The weight capacity depends on drywall thickness and bolt size. For grab bar installation, use toggle bolts rated for 250 pounds or more per bolt and only in drywall that is 5/8 inch or thicker. Standard 1/2-inch drywall does not have enough mass to hold safely under the sudden lateral and downward forces of a person grabbing a bar during a fall. If your bathroom walls are tiled over 1/2-inch drywall without backer board, a contractor may need to add blocking behind the wall first.

Step-by-step installation

1. Mark the location with painter's tape. Have your parent stand at the toilet or in the shower and reach for the bar placement. Adjust the height to match their natural grip, not just the ADA standard. The standard is a guideline, not a rule for every body. Mark the final position with painter's tape.
2. Locate studs or plan for toggle bolts. Use a stud finder on the wall. If studs are available within the bar's mounting hole spacing, plan for stud anchors. If not, plan for heavy-duty toggle bolts in walls 5/8 inch or thicker.
3. Drill pilot holes. For tile walls, use a carbide or diamond-tipped drill bit to avoid cracking the tile. Drill slowly with minimal pressure. For drywall, a standard bit works fine.
4. Install the anchors. For studs, drive the lag screws directly. For toggle bolts, insert the folded toggle through the hole, let it expand behind the wall, then tighten the screw.
5. Mount the bar and test. Attach the bar to the flanges. Pull the bar firmly from multiple angles, including down and outward. A well-anchored bar should not move at all under body weight. If it flexes or pulls from the wall, the installation is not safe. Take it down, reassess the anchor points, and reinstall.

Common mistakes caregivers make

These are the errors that come up repeatedly when families install grab bars on their own.

• Relying on suction-cup bars. Suction bars are marketed as no-drill options and sold at most home goods stores. They are not safe as a primary support for a senior with fall risk. Suction fails on textured surfaces, in humidity, and without warning. Use them only as a very short-term measure while permanent bars are being ordered and installed.
• Installing only in the shower and skipping the toilet. The toilet is where many bathroom falls happen. Installing a shower bar and leaving the toilet unaddressed leaves the higher-risk location unchanged. Do the toilet first if you can only do one.
• Placing the bar where it is convenient to anchor, not where it will be used. A bar installed 6 inches too high or too far back is not useful in a real transfer. Mark the location based on your parent's actual reach and body mechanics, then find the anchor.
• Using a towel bar as a grab bar. Towel bars are decorative hardware anchored for towel weight, not body weight. They are a common grip point in bathrooms and they fail. Replace towel bars in reach of the toilet and shower with proper grab bars or dual-purpose grab bar/towel combinations.
• Not testing the installation. After installing any grab bar, test it by pulling firmly from multiple angles before your parent uses it. Test it yourself first. A bar that holds a towel may still flex under real force.

If you are not comfortable assessing wall construction or drilling into tile, hire a professional. A certified aging-in-place specialist (CAPS) has training in exactly this kind of assessment. The National Council on Aging also notes that a home safety assessment by an occupational therapist can identify fall risks across the entire home, not just the bathroom, and recommend modifications based on your parent's specific mobility and balance.

If your parent has a fall history or a condition that affects balance, consider pairing grab bars with a medical alert device so they can call for help if a fall does occur. Our guide to what to look for in a medical alert device covers the features that actually change outcomes, and our comparison of medical alert systems for seniors breaks down the options by situation.
